Valcourt FP5 Westmount

Description

Description

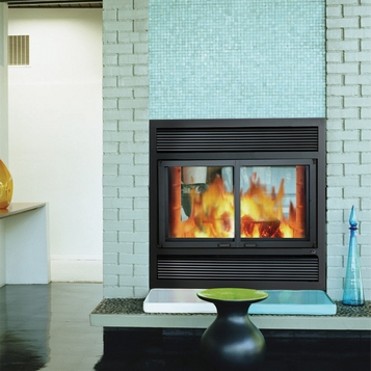

So what’s better than a Valcourt fireplace in one room? How about a Valcourt fireplace that has a face in two rooms at the same time. A double sided Valcourt fireplace. That is what the Westmount gives to the Valcourt line. Great in a master suite between the bedroom and bathroom. Very romantic. Or how about between a dining room and a living room? Or maybe between a dining room and a kitchen. Whatever or wherever you desire a see-through fireplace, the Westmount is there for you. Enjoy the fire wherever you may happen to be.

Features

• • Model Number: FP5-S-BO / FP5-D-BO

• • See-through fireplace

• • One fixed ceramic glass door on one side

• •  Second side, see door assemblies options

• • Rigid fire screen doors

• • Cast iron grate

• • Molded refractory bricks

• • Requires an 8″ chimney

• • Tested or/and listed as per applicable standards by Intertek

Options

• • Narrow overlap – metallic black (VA2FE06)

• • Narrow overlap – antique brass (VA2FE03)

• • Narrow overlap – brushed nickel (VA2FE39)

• • Large overlap – metallic black (VA2FL06)

• • Fan kit (VA4400)

Technical specs
Type of fuel: Wood
Color: Satin black
Exterior dimensions: 36 1/8″”W x 28¼””D x 40¾””H
Type of chimney: 2100° F / 1150° C
Recommended chimney diameter: 8″”
Centre line of flue outlet to the back: 14 1/8″”
Centre line of flue outlet to the side: 18 1/16″”
Approved chimney manufacturers, brands, and types
Manufacturer: Selkirk
Brand: Ultra-Temp (UT)
Type: 1″” Solid Pack
Manufacturer: Selkirk
Brand: Super Pro (SPR)
Type: 1″” Solid Pack
Manufacturer: Selkirk
Brand: Super Vent (JSC)
Type: 1″” Solid Pack
Manufacturer: Selkirk
Brand: Hart & Cooley (TLC)
Type: 1″” Solid Pack
Manufacturer: Selkirk
Brand: Sure-Temp (ST)
Type: 1″” Solid Pack
Manufacturer: Selkirk
Brand: CF Sentinel (CF)
Type: 2″” Solid Pack
Manufacturer: Selkirk
Brand: Super Pro 2100 (ALT)
Type: 2″” Solid Pack
Manufacturer: Selkirk
Brand: Super Vent 2100 (JM)
Type: 2″” Solid Pack
Manufacturer: Selkirk
Brand: UltimateOne
Type: 1″” Solid Pack
Manufacturer: Security Chimney
Brand: ASHT+
Type: 1″” Solid Pack
Manufacturer: Security Chimney
Brand: S-2100
Type: 2″” Solid Pack
Manufacturer: Simpson Dura-Vent
Brand: Dura Tech
Type: 1″” Solid Pack
Manufacturer: Simpson Dura-Vent
Brand: Dura Plus HTC
Type: 2″” Solid Pack
Manufacturer: ICC
Brand: Excel 2100
Manufacturer: Metal Fab
Brand: Temp Guard
Type: 1″” Solid Pack
Manufacturer: Olympia Chimney
Brand: Ventis
Type: 1″” Solid Pack
Minimum chimney height: 15′
Firebox dimensions: 3.5 cu. ft.
Log positioning: East / West
Maximum log length: 18″”
Door opening dimensions: 28¼””W x 14″”H
Type of door: Double, with steel frame

Minimum clearances to combustibles *
(Data expressed in inches. 1 inch = 25.4 mm)
Back wall 0″”
Sides 0″”
Floor 0″”
Combustible shelf 46″” (6″” shelf)
Side mantle 0″”
Side wall 0″”
Non-combustible surround (top) 0″”
Non-combustible surround (sides) 0″”

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites).

• • Glass surface 572 sq. in.

• • Weight 195 kg (430 lbs)

• • Warranty Limited lifetime

• • Test standard – safety ULC S-610 / UL127
