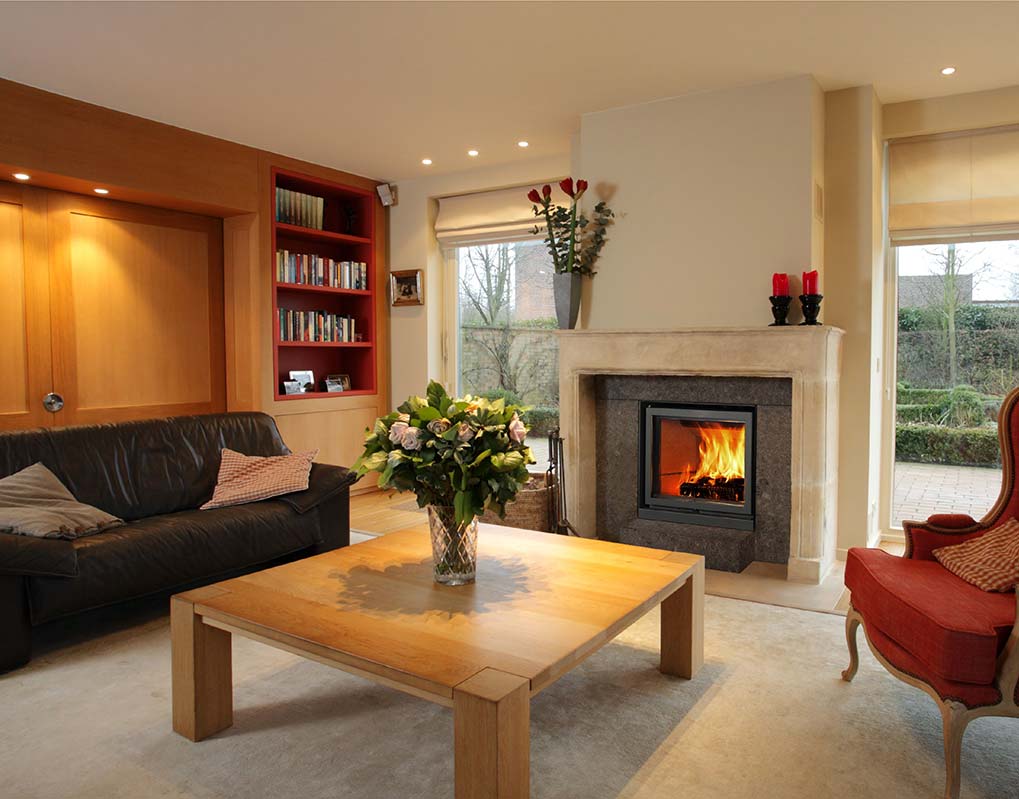

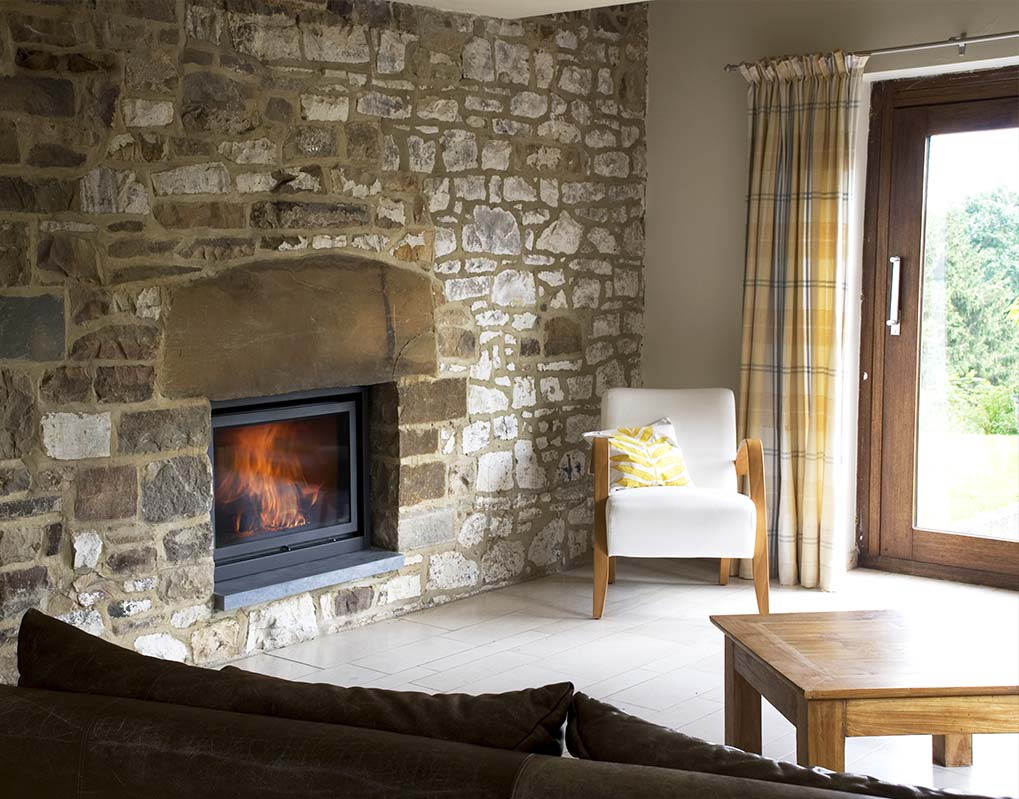

The Stûv 16-in (INSERT)

Fire in its purest form combined to clean combustion.

Clean line inserts showcasing the flames to perfection. The Stûv 16 in are EPA certified. Fancy an XXL fire? This is exactly what you’ll get with the Stûv 16-in, with its panoramic view of the flames. Atmosphere and satisfaction guaranteed. Thanks to the innovative combustion system and exceptional efficiency (over 75%), this is the perfect solution for your main or occasional heating needs. Designed to suit an existing fire, the Stûv 16-in is available in three sizes. Every home needs a Stûv!

Specifications

Combustion technology SBR – Single Burn Rate
Weight of the unit LBS 16/58 : 245 | 16/68 : 270 | 16/78 : 290
Minimum power BTU 15.000
Maximum power BTU 16/58 : 48.000 | 16/68 : 56.000 | 16/78 : 72.000
Wood consumption Kg/hr 16/58 : 1,8 | 16/68 : 2,1 | 16/78 : 2,5
Particle emissions* gr/hr 16/58 : 1,4 | 16/68 : 2,3 | 16/78 : 3,1
Length of logs in vertical position 12″
Length of logs in horizontal position 16/58 : 17″ | 16/68 : 21″ | 16/78 : 25″
Air intake (min.) Ø63 mm | Ø2.5″
Airtight outdoor air intake Option
North american standards UL 127 – 2011 | ULC S610 – M87 | [ 1658-Z & 1668-Z ] EPA 2020 NSPS phase 1 + MONTREAL | [ 1678-Z ] EPA NSPS phase 2
Chimney diameter & type Ø6″ (STD) – Ø7″ (OPT) | UL-127 | ULC-S610 CAN | ULC-S635 | CAN/ULC-S640 | UL-1777
Chimnet adaptor Ø6″ & Ø7″ Standard
Thin Edge Frame Option
Picture Type Frame Option
Dimendion A 16/58 : 29-1/4″ | 16/68 : 33-3/16″ | 16/78 : 37-1/8″
