Description

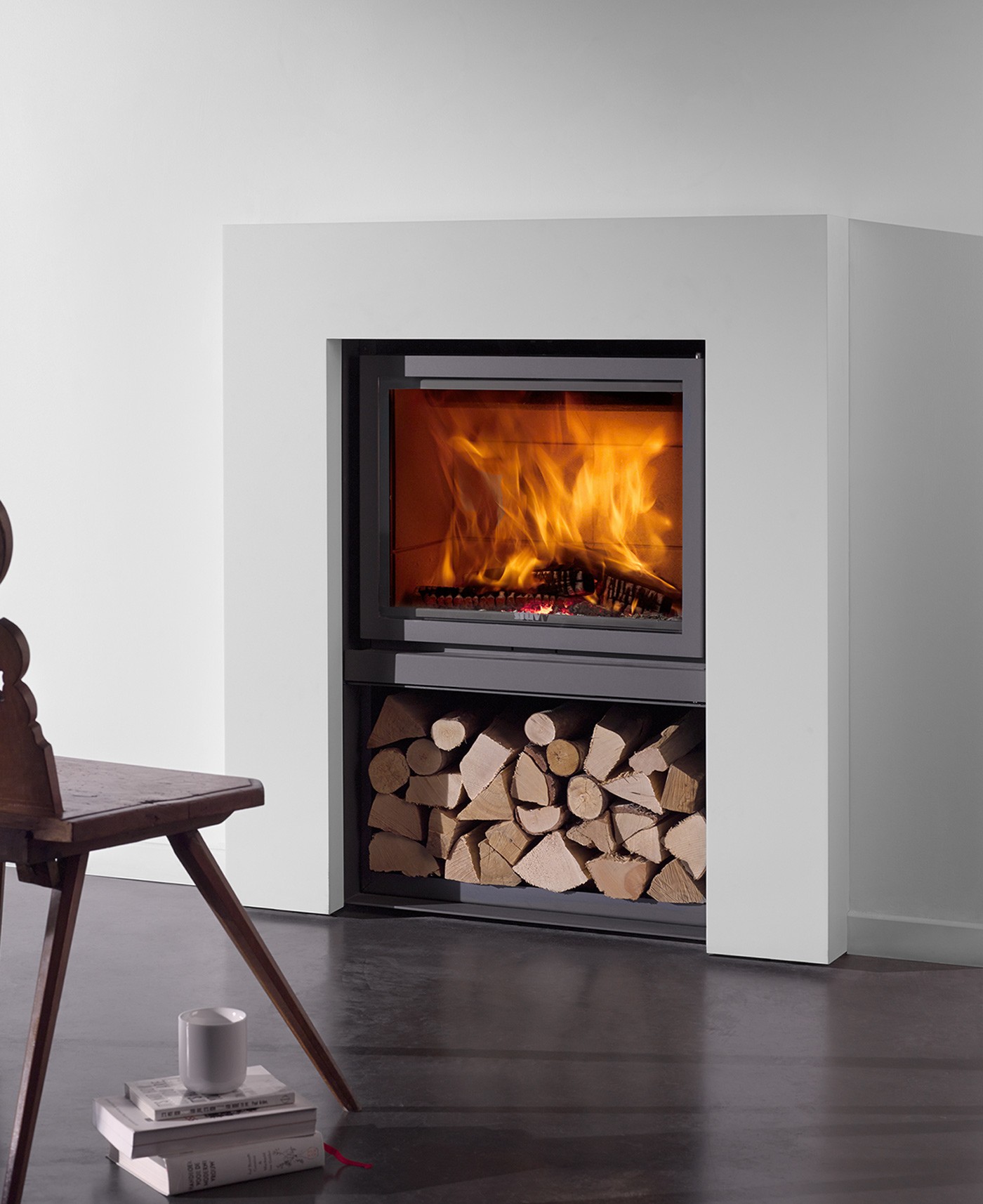

The Stûv 16 Combo
Clean lines. Amazing performance.
The Stûv 16 line showcases the beauty of flames through its refined design. These models of wood fireplaces and inserts have a large opening for maximum heat distribution. Fire in its purest form with automatic control – The combustion techniques of the Stûv 16 allows optimizing their efficiency while eliminating their environmental impact. Equipped with SBR (single burn rate) automatic control, these models are easy to use: no air register to manipulate all you need to do is light the logs and enjoy the spectacular fire.
Specifications
EPA Certified – Low Fine Particulate Matter Emissions
Combustion technology SBR – Single Burn Rate
Weight of the unit LBS 16/58 : 245 | 16/68 : 270 | 16/78 : 290
Minimum power BTU 15.000
Maximum power BTU 16/58 : 48,000 | 16/68 : 56,000 | 16/78 : 72,000
Wood consumption Kg/hr 16/58 : 1,8 | 16/68 : 2,1 | 16/78 : 2,5
Particle emissions* gr/hr 16/58 : 1,4 | 16/68 : 2,3 | 16/78 : 3,1
Length of logs in vertical position 12″
Length of logs in horizontal position 16/58 : 17″ | 16/68 : 21″ | 16/78 : 25″
Air intake (min.) Ø63 mm | Ø2.5″
Airtight outdoor air intake Option
North american standards UL 127 – 2011 | ULC S610 – M87 | [ 1658-Z & 1668-Z ] EPA 2020 NSPS phase 1 + MONTREAL | [ 1678-Z ] EPA NSPS phase 2
Chimney diameter & type Ø6″ (STD) – Ø7″ (OPT) | UL-127 | ULC-S610 CAN | ULC-S635 | CAN/ULC-S640 | UL-1777
Chimnet adaptor Ø6″ & Ø7″ Standard
Thin Edge Frame Option
Picture Type Frame Option
Dimendion A 16/58 : 29-1/4″ | 16/68 : 33-3/16″ | 16/78 : 37-1/8″
